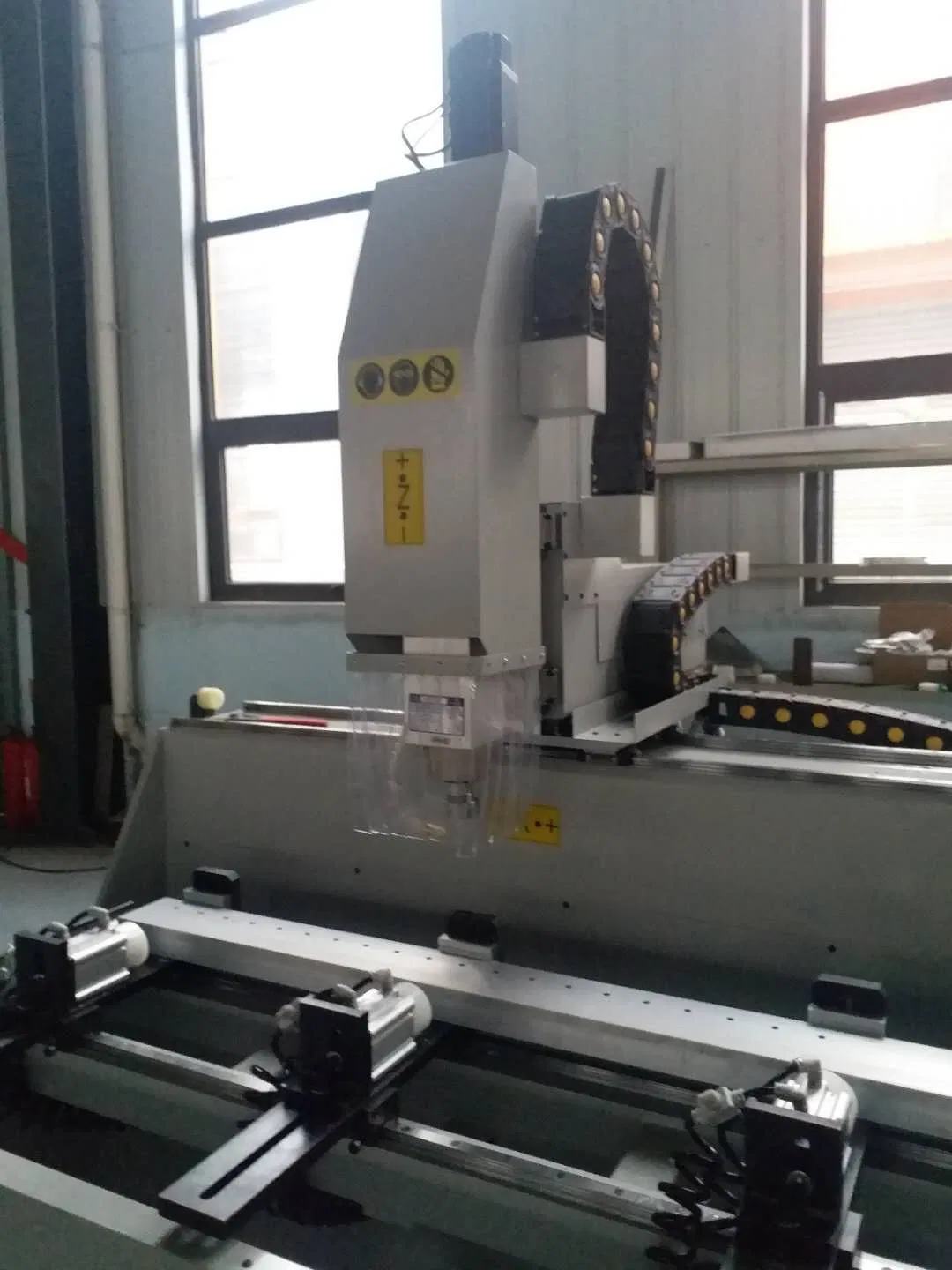

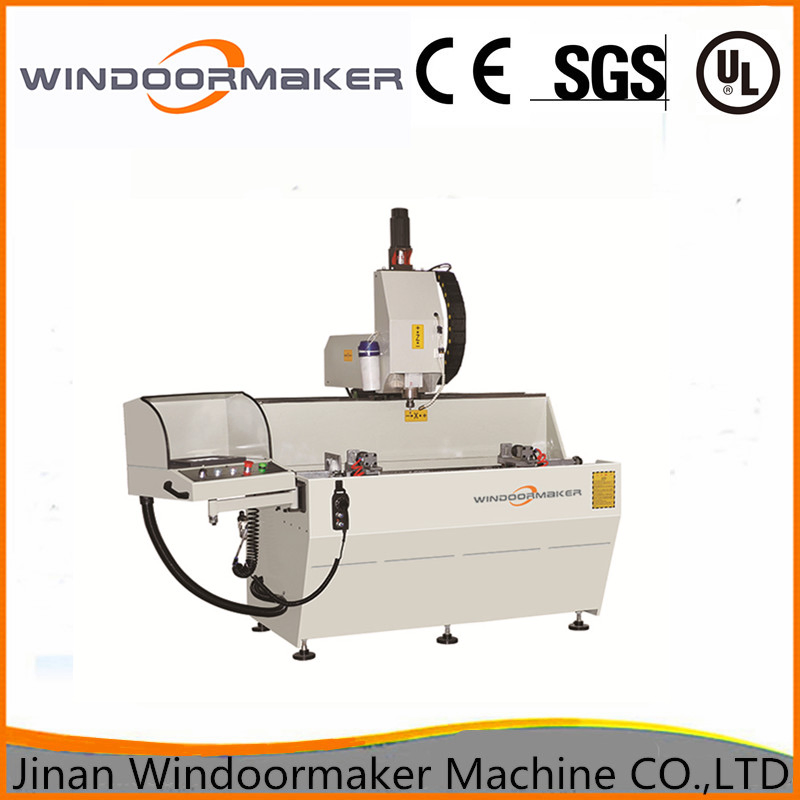

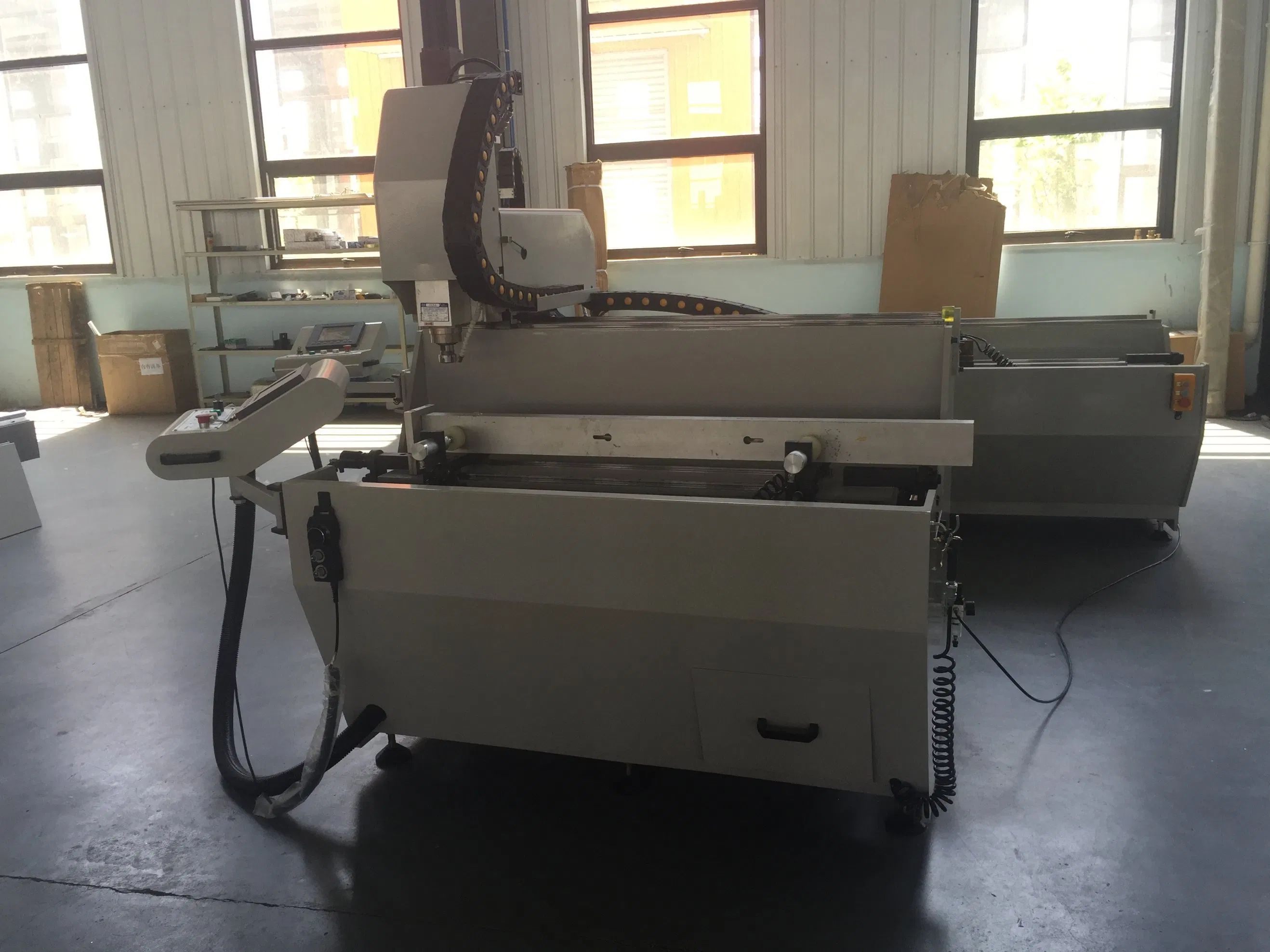

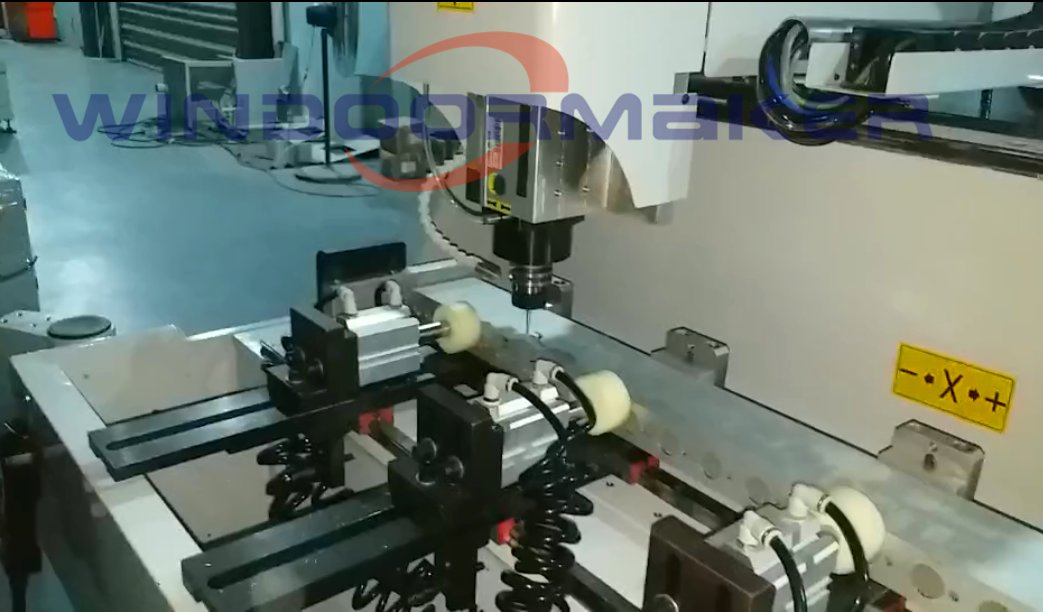

Aluminum Lock Hole CNC Milling and Drilling Machine for Window and Door Making Machine
Aluminum Lock Hole CNC Milling and Drilling Machine for Window and Door Making Machine
Aluminum Lock Hole CNC Milling and Drilling Machine for Window and Door Making Machine
Aluminum Lock Hole CNC Milling and Drilling Machine for Window and Door Making Machine
Aluminum Lock Hole CNC Milling and Drilling Machine for Window and Door Making Machine
1 / 5
Aluminum Lock Hole CNC Milling and Drilling Machine for Window and Door Making Machine
Aluminum Lock Hole CNC Milling and Drilling Machine for Window and Door Making Machine
Aluminum Lock Hole CNC Milling and Drilling Machine for Window and Door Making Machine
Aluminum Lock Hole CNC Milling and Drilling Machine for Window and Door Making Machine
Aluminum Lock Hole CNC Milling and Drilling Machine for Window and Door Making Machine

Aluminum Lock Hole CNC Milling and Drilling Machine for Window and Door Making Machine

Customization: Available
After-sales Service: Available
Warranty: 1 Year
Send Inquiry

Product Description

📊 Overview - Basic Info
Model NO.WM-CNC-1200
ConditionNew
CertificationISO, CE
Automatic GradeAutomatic
CNC or NotCNC
Voltage380V
FunctionHoles Processing Routing
Power4.5kw
Rotary Speed0-18000r/Min
Operation Air Pressure0.6~0.8MPa
Specification2200x1500x1950mm
OriginChina
HS Code847780000
⚙️ Product Description & Specification

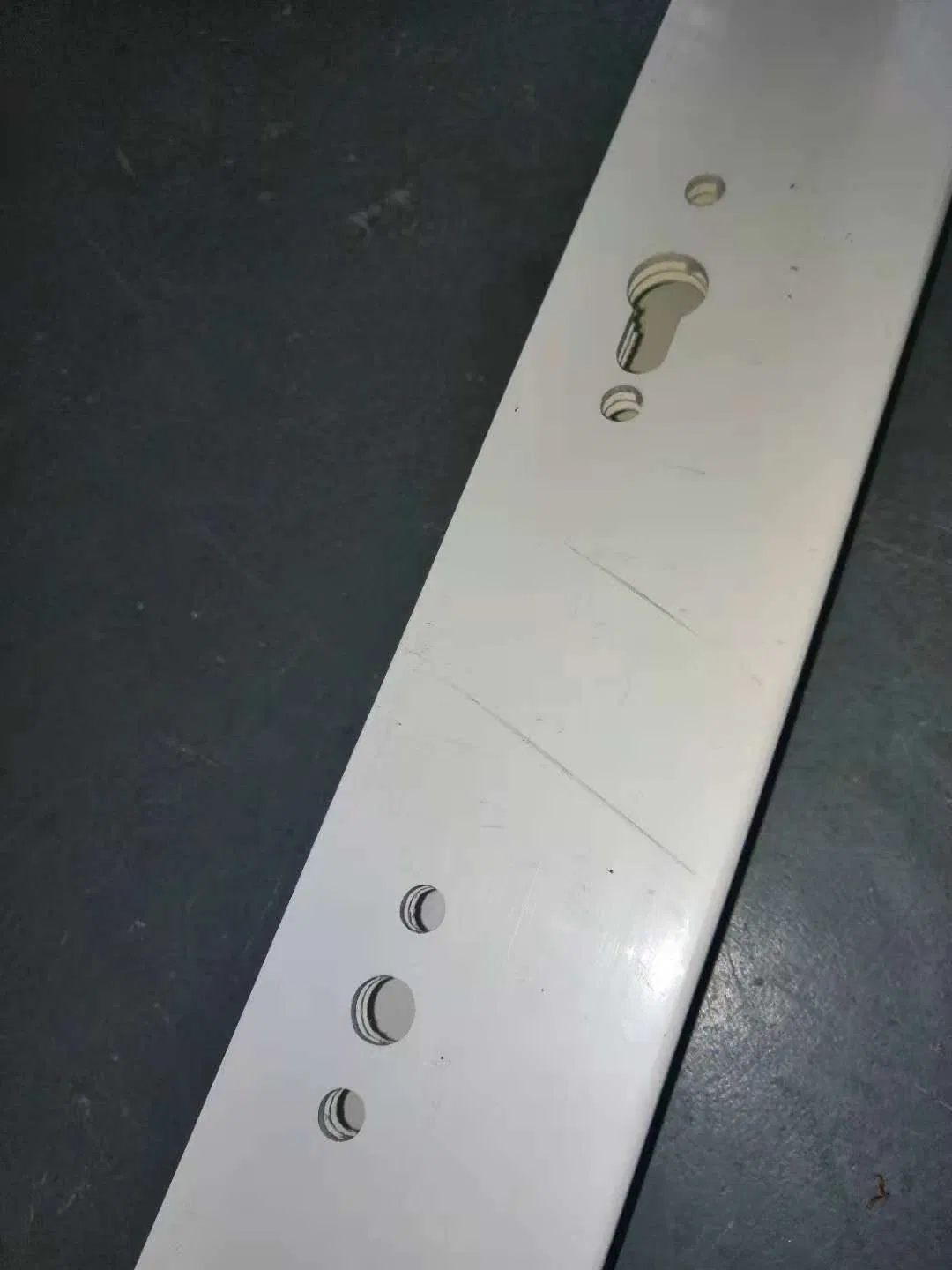

  • Used for all kinds of holes like drilling holes, milling groove, circle, door lock hole etc.
  • Equipped with high-performance CNC system to ensure smooth machine operation.
  • Adopted with high precision electrical axis for enhanced working safety.
  • X axis features high precision helical gear; Y and Z axes utilize high precision ball screws for smooth transmission.
  • Programming software automatically converts G code; design holes on computer for seamless conversion.
  • The working table rotates -90°, 0°, and +90°, allowing three-side profile processing in a single clamping.
  • Includes spraying cooling system for the saw blade.
  • Powerful 4.5KW air cooling spindle.
📋 Technical Parameters
Power supplyMade to order
Spindle power4.5KW
Rotary speed0-18000r/min
Operation air pressure0.5~0.6Mpa
Processing range (X/Y/Z)X=1200mm, Y=300mm, Z=280mm
Axis feeding speedX=0-60m/min, Y=0-48 m/min, Z=0-20 m/min
Positioning accuracyX=±0.05mm, Y=±0.05mm, Z=±0.02MM
RoughnessRa6.3um
MAX. Processing thickness6mm
Weight610kg
📜 Certifications
Certification 1

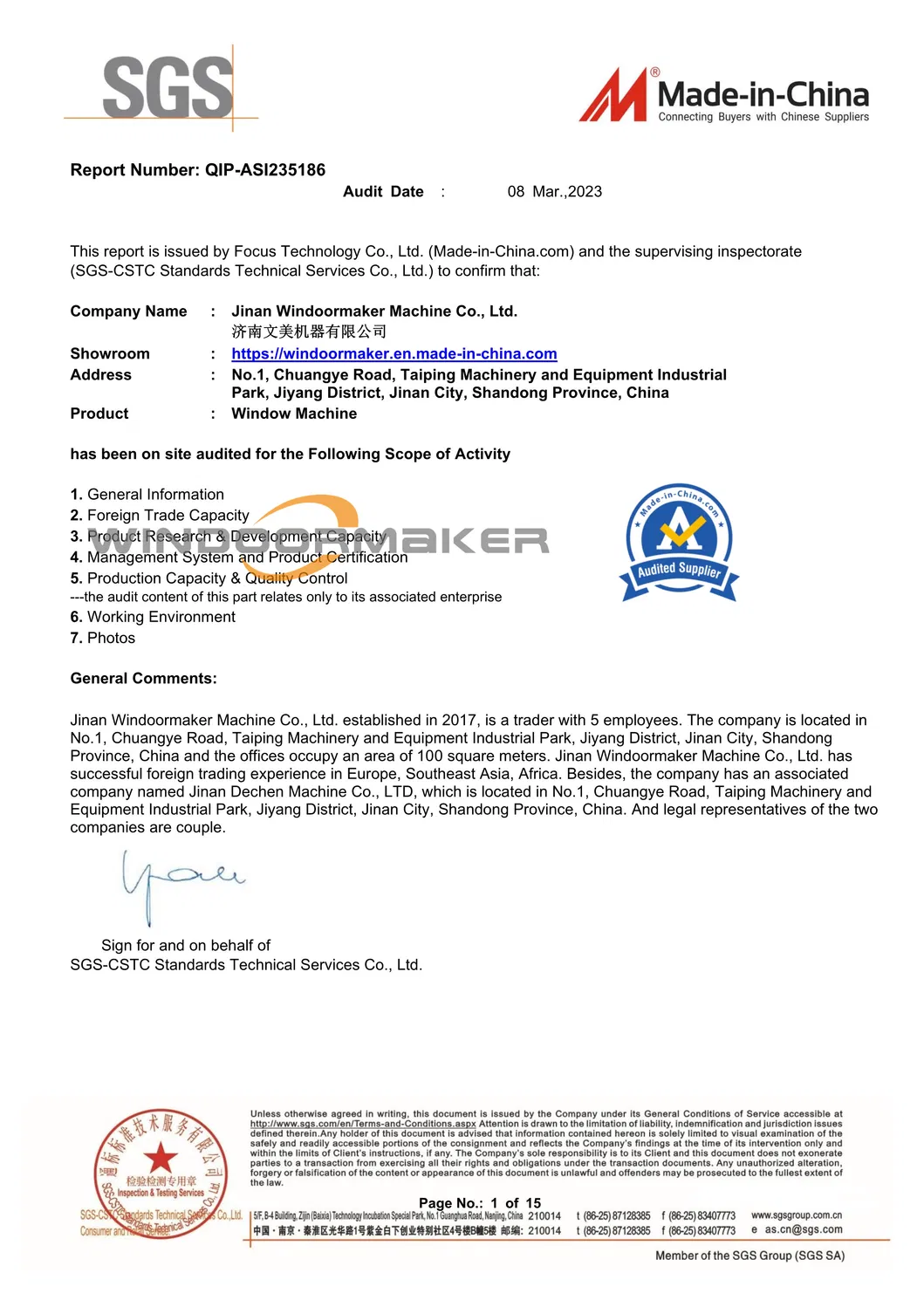

Certification 2
🏢 Profile Overview
Factory View

We are an engineering company with over 10 years of experience specializing in the manufacture and supply of UPVC & aluminum window and door machines. Our factory covers an area of 15,000 m².

Throughout years of development, we have dedicated significant efforts to machine improvement, introducing new equipment and technological innovations for high-quality production.

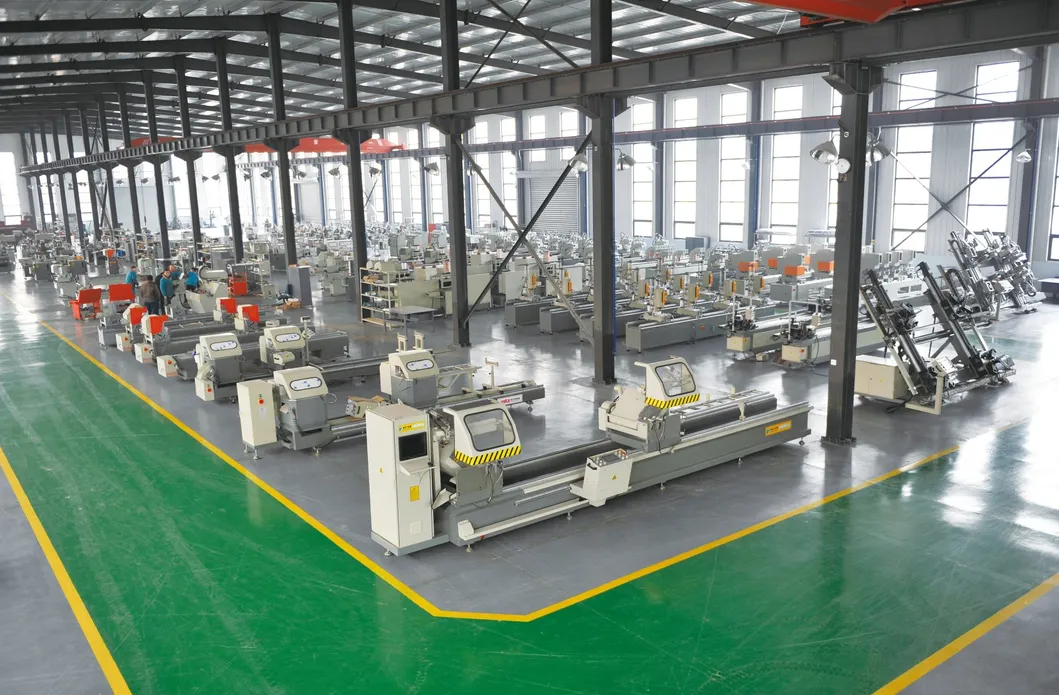

Workshop 1

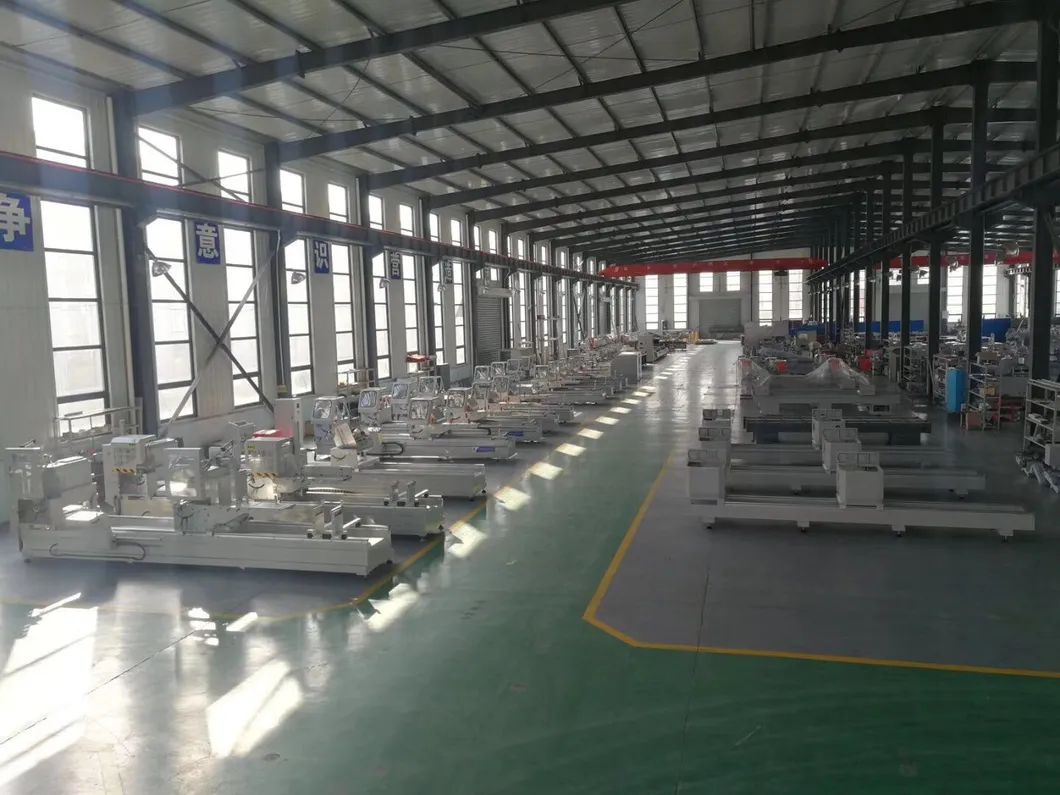

Workshop 2
🤝 Machine at Customer Site

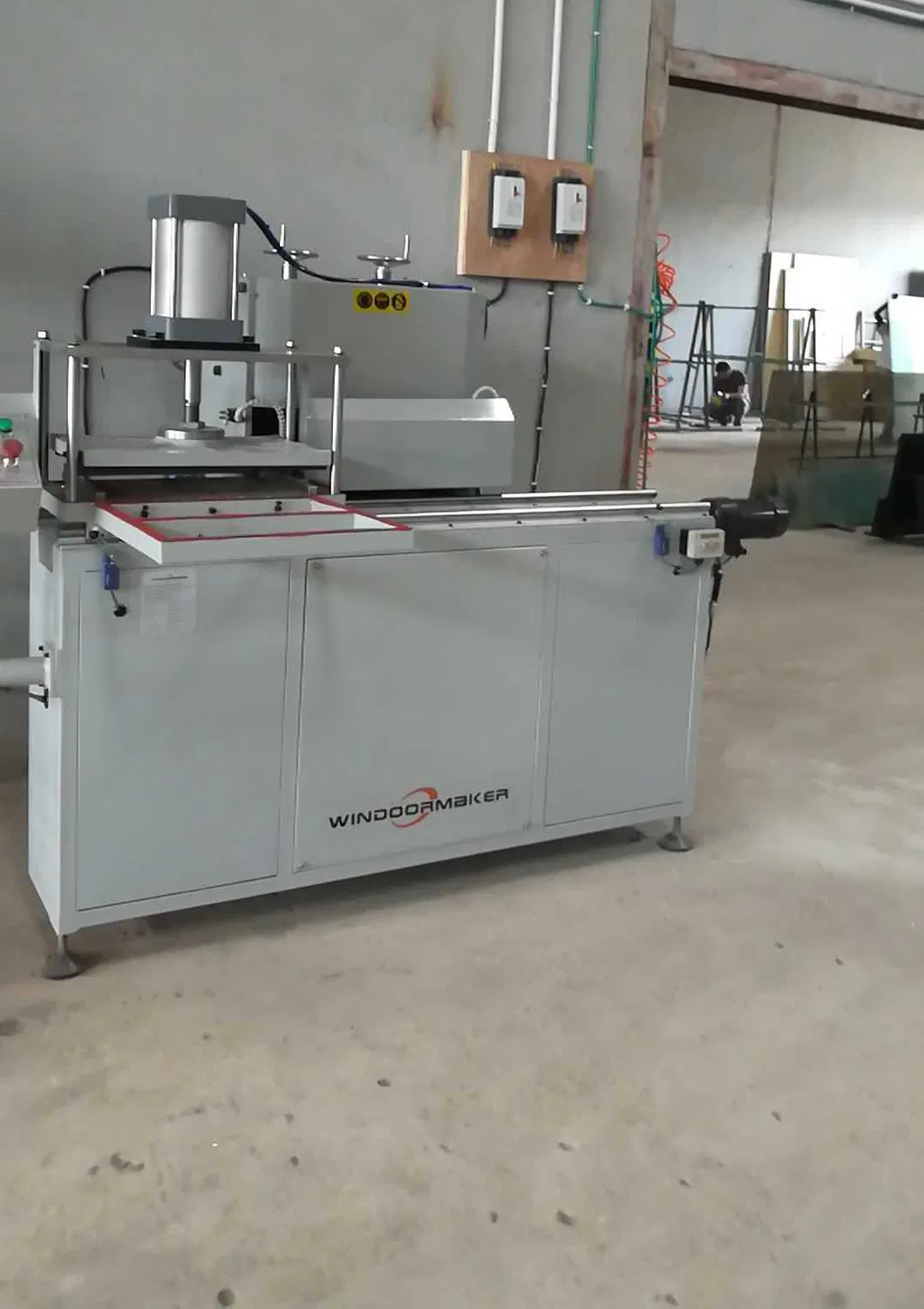

Customer site 1

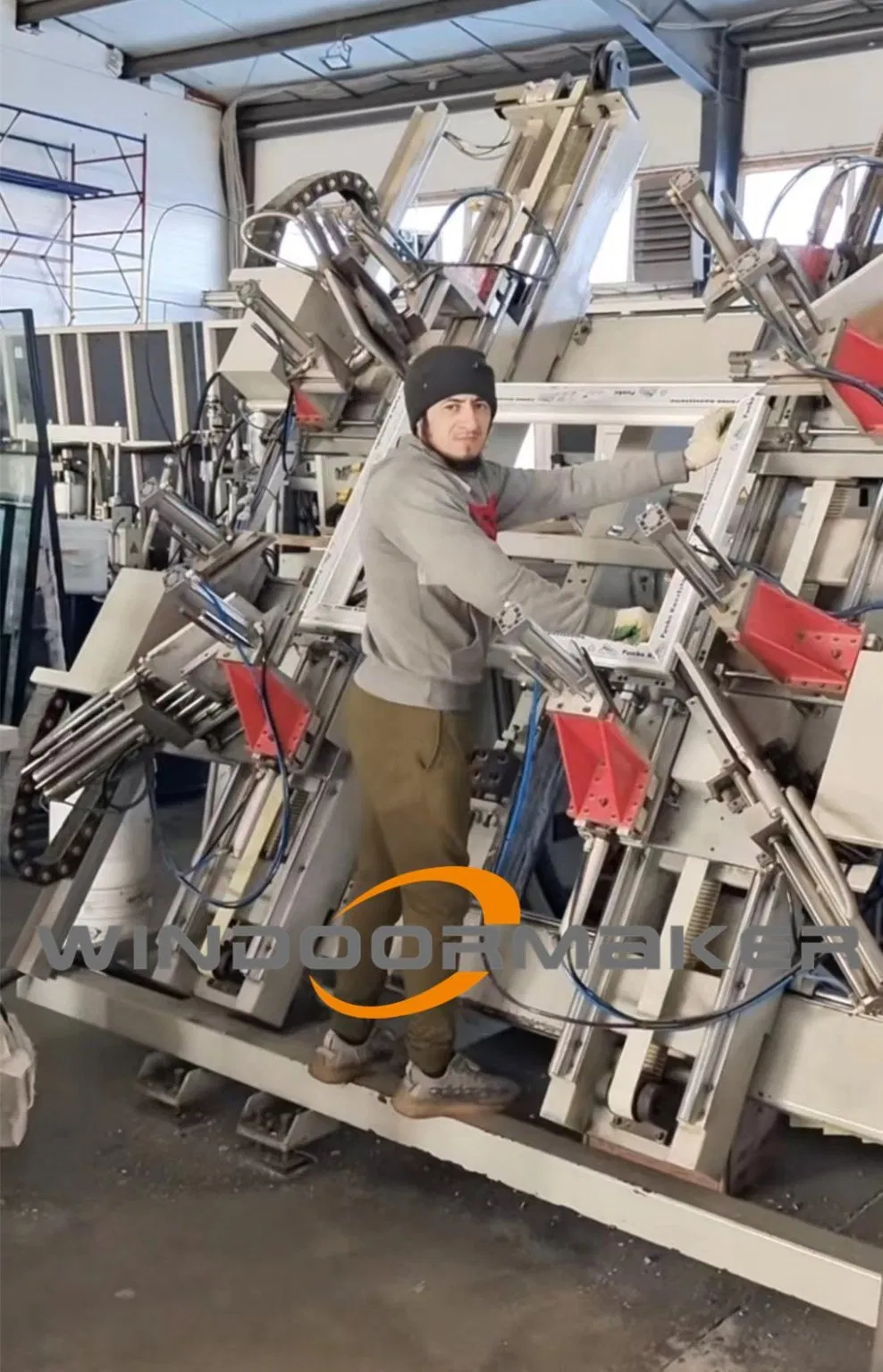

Customer site 2

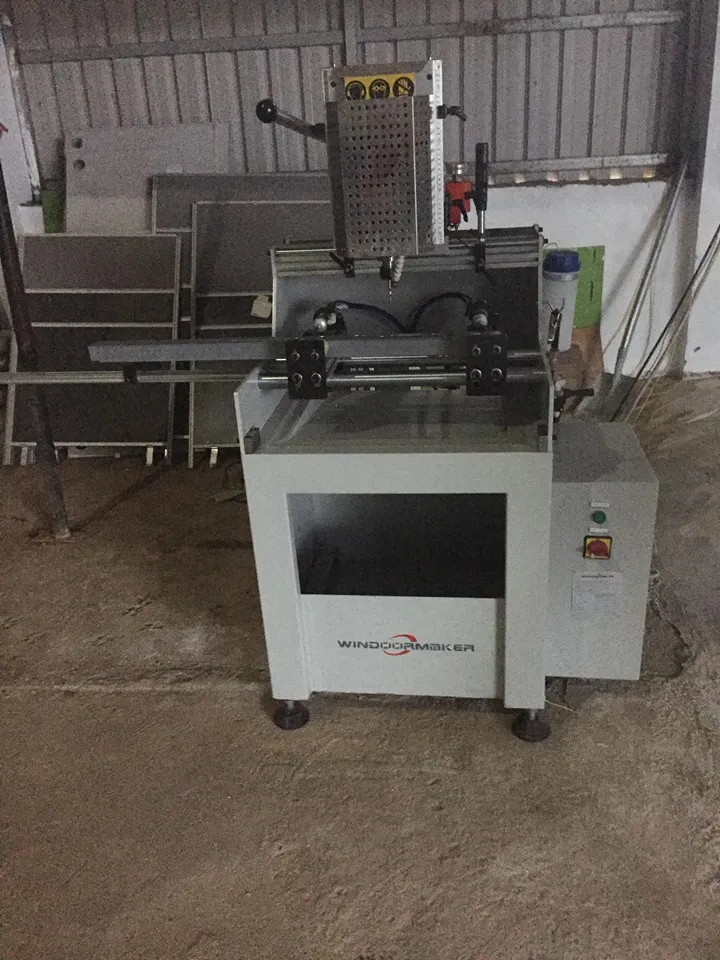

Customer site 3
📦 Packaging & Shipping

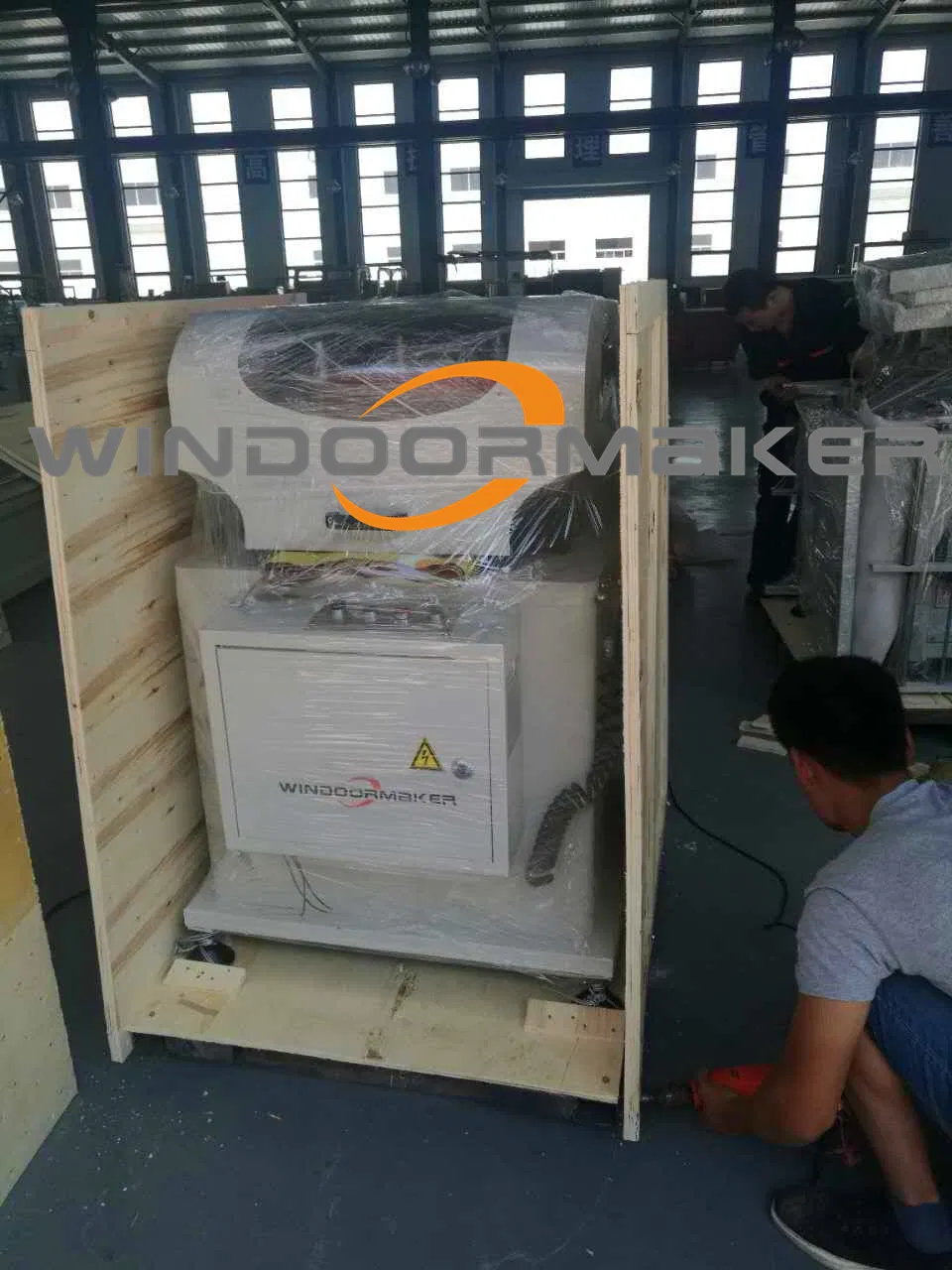

Packing 1

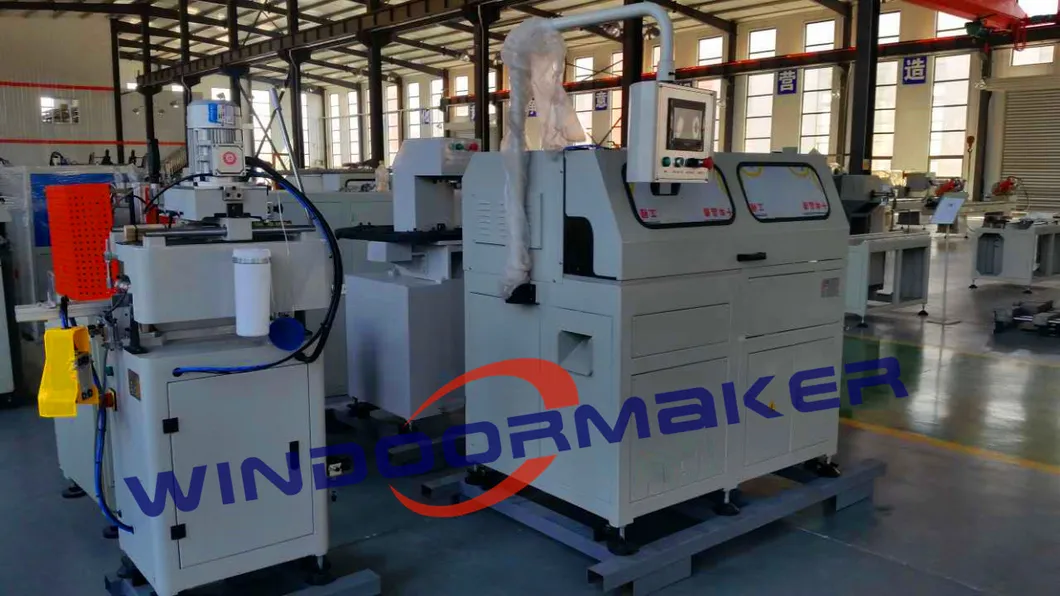

Packing 2

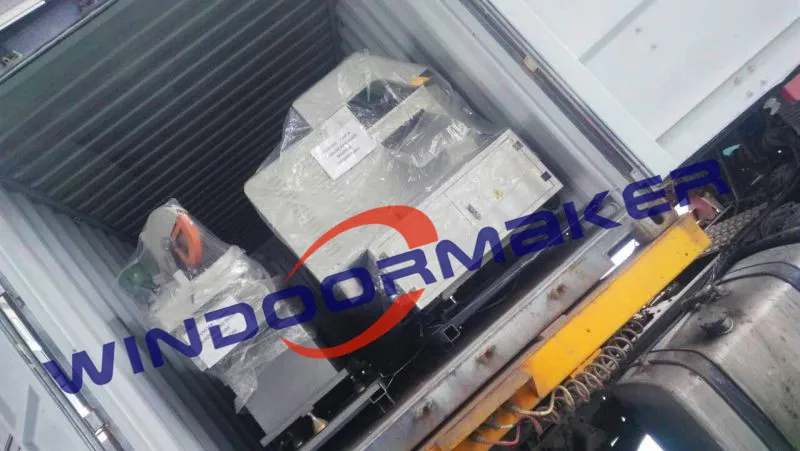

Shipping
❓ Frequently Asked Questions
Q1: What types of processing can this CNC router perform? A1: This machine is designed for various hole-processing tasks, including drilling holes, milling grooves, creating circles, and machining door lock holes in aluminum profiles.
Q2: How does the rotating worktable benefit the production process? A2: The worktable can rotate between -90°, 0°, and +90°. This allows the operator to process three sides of an aluminum profile with only a single clamping, significantly increasing efficiency and accuracy.
Q3: What kind of cooling system does the machine use? A3: It features a spraying cooling system specifically designed for the blade and a 4.5KW air-cooled spindle to maintain optimal temperatures during high-speed operations.
Q4: What is the positioning accuracy of the WM-CNC-1200? A4: The machine offers high precision with a positioning accuracy of X=±0.05mm, Y=±0.05mm, and Z=±0.02mm, ensuring consistent quality for intricate designs.
Q5: Is it easy to program new hole designs? A5: Yes, the machine uses programming software that supports automatic G-code conversion. You can draw any hole pattern on a computer, and the software will convert it for the machine to execute.
Q6: What is the maximum thickness of material the machine can process? A6: The machine is capable of processing profiles with a maximum thickness of up to 6mm.
