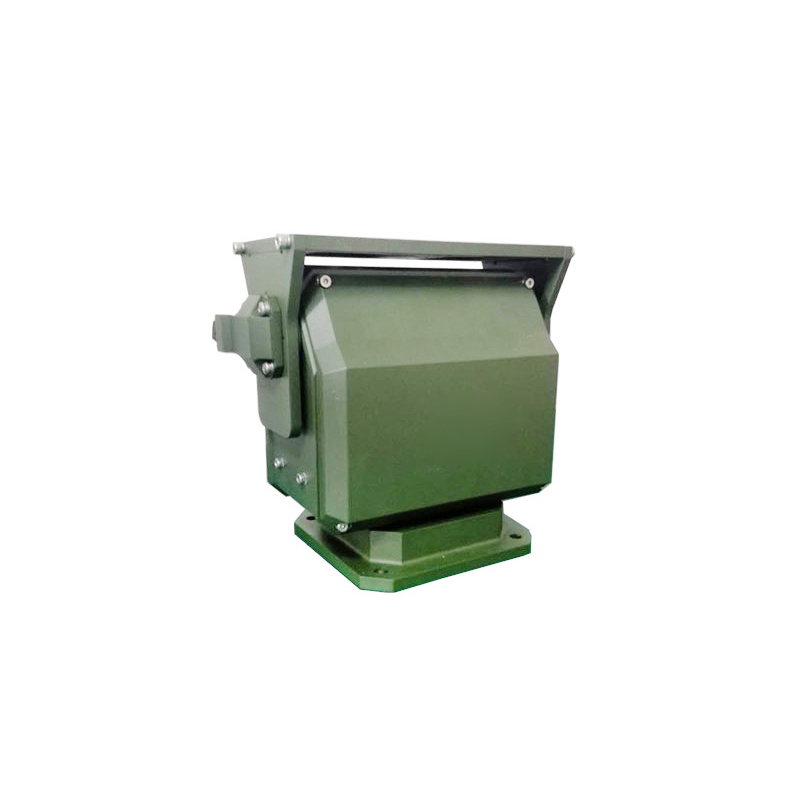

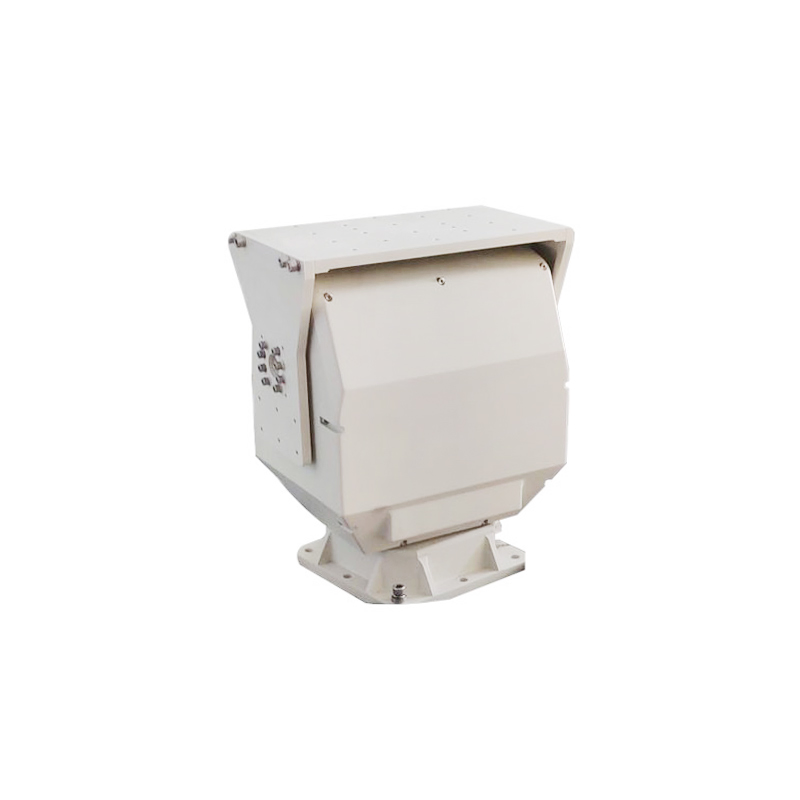

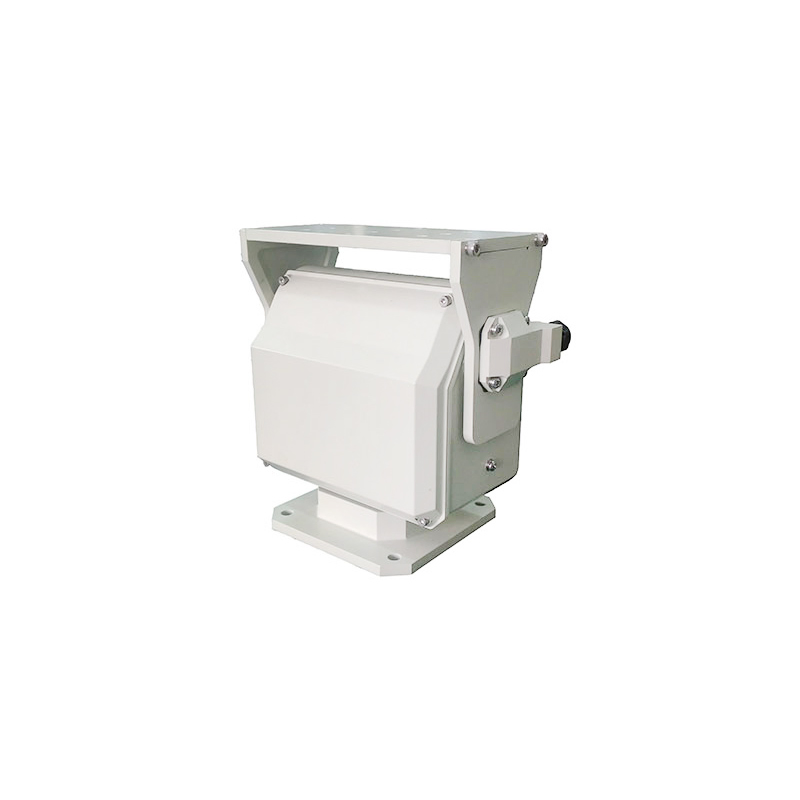

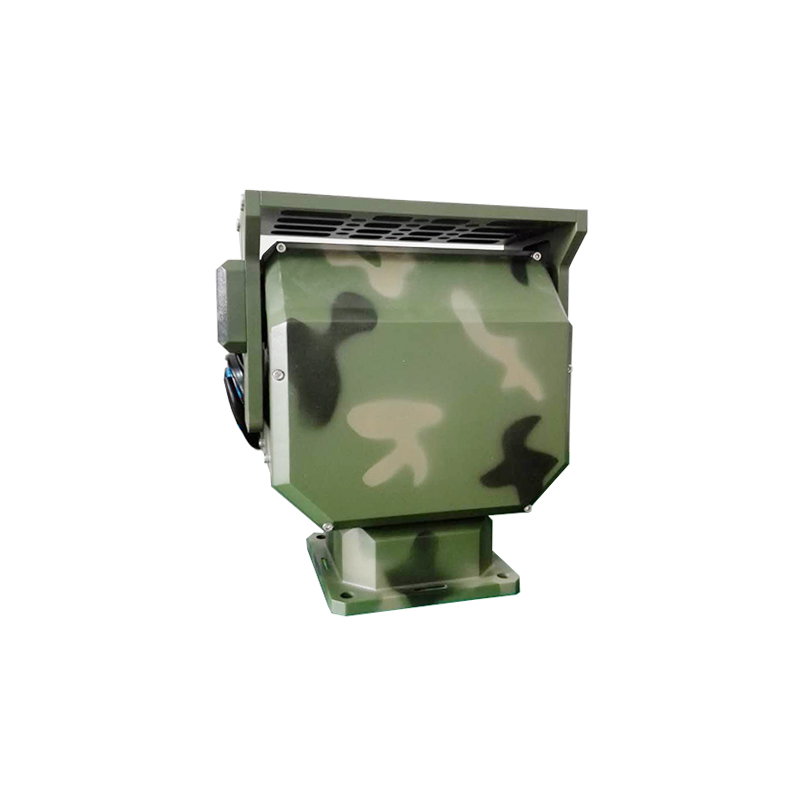

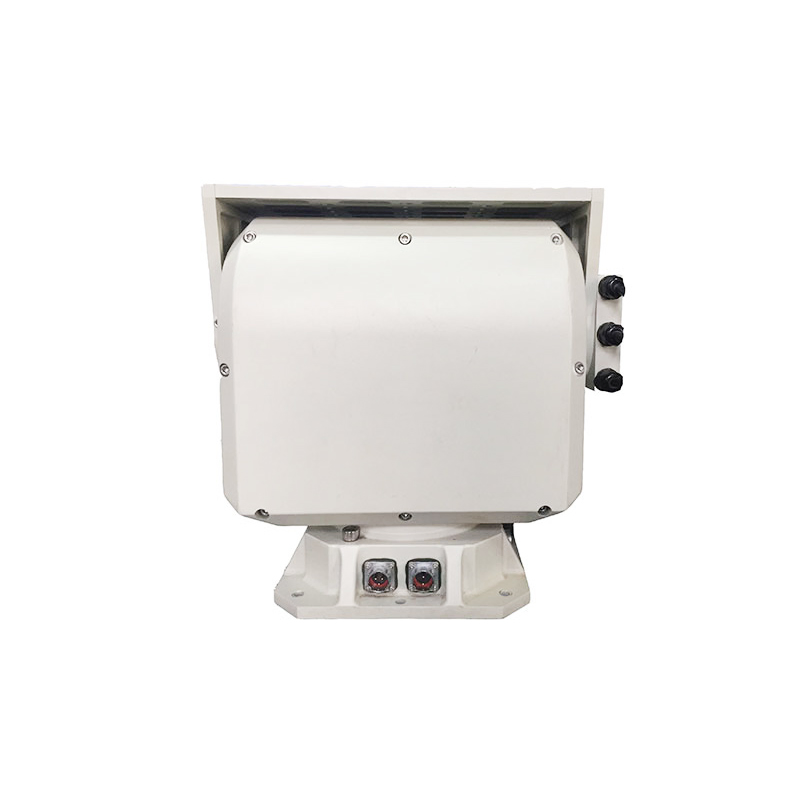

100kg Heavy Load High Speed RS485 Ethernet Thermal Camera PT Pan Tilt
100kg Heavy Load High Speed RS485 Ethernet Thermal Camera PT Pan Tilt
100kg Heavy Load High Speed RS485 Ethernet Thermal Camera PT Pan Tilt
100kg Heavy Load High Speed RS485 Ethernet Thermal Camera PT Pan Tilt
100kg Heavy Load High Speed RS485 Ethernet Thermal Camera PT Pan Tilt
1 / 5
100kg Heavy Load High Speed RS485 Ethernet Thermal Camera PT Pan Tilt
100kg Heavy Load High Speed RS485 Ethernet Thermal Camera PT Pan Tilt
100kg Heavy Load High Speed RS485 Ethernet Thermal Camera PT Pan Tilt
100kg Heavy Load High Speed RS485 Ethernet Thermal Camera PT Pan Tilt
100kg Heavy Load High Speed RS485 Ethernet Thermal Camera PT Pan Tilt

100kg Heavy Load High Speed RS485 Ethernet Thermal Camera PT Pan Tilt

Customization: Available
Technology: Pan / Tilt / Zoom
Style: Pan/Tilt
Send Inquiry

Product Description

Basic Information
Model NO.
CQ-H100
Type
Wide-Angle
Sensor
CMOS
HDMI Format
960P
Horizontal Resolution
540tvl
Kind
Autofocus Lens
Certification
CE, FCC
Protection
IP66
Effective Distance
≧30m
Sensor Size
1/3 inch
Angle of Rotation
0-360 Degree
Load
100kg
Product Description

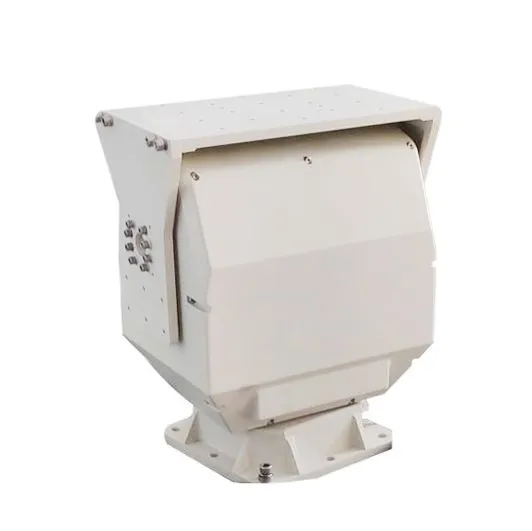

100kg Heavy Load High Speed PT Pan Tilt
  • High repetitive positioning accuracy up to ±0.1°;
  • Built-in incremental encoder for closed-loop control;
  • Shell made of high-strength aluminum alloy die-casting material;
  • Worm gear transmission with self-locking on power failure;
  • Optional slip rings for 100 or 1 Gigabit network transmission;
  • Built-in serial server for seamless network control;
  • Supports PT orientation, focal length, and focus value feedback;
  • Adaptive functions for various lens preset positions;
  • Support for customized communication protocols.
Technical Specifications
Parameter Specification Details
Model NumberCQ-H100
Rotation SpeedHorizontal 0.01° to 20°/S; Pitch 0.01°~10°/S
Angle of RotationHorizontal 0~360° continuous; Pitch -60° to +60°
Preset Position200 (expandable)
Repeat Accuracy±0.1°
Angular Resolution0.01°
Communication InterfaceRS485 (RS422 / RS232 / RJ45 optional)
Input Power RangeDC48V
Power WastageRunning ≤ 300W, Standby ≤ 10W
Operating Temp-25°C to +55°C (Optional low temp -40°C)
Load Capacity≥100Kg
Dimensions413mm × 250mm × 455mm
Weight45Kg
Carrying MethodTop load / Side load
Protection ClassIP66
Frequently Asked Questions
What is the maximum load capacity of the CQ-H100?
The CQ-H100 is designed for heavy-duty applications, supporting a maximum load capacity of 100kg.
How accurate is the positioning of this Pan-Tilt unit?
It features high repetitive positioning accuracy of up to ±0.1° with an angular resolution of 0.01°.
Is the device suitable for outdoor or harsh environments?
Yes, it has an IP66 protection rating and an optional anti-salt spray treatment, making it ideal for weatherproof and coastal applications.
What happens if there is a power failure?
The unit utilizes a worm gear transmission system, which provides a self-locking function to maintain its position during power interruptions.
What communication protocols are supported?
The standard model supports PELCO_D protocols, and we also offer support for various customized protocols.
Can it return real-time position information?
Yes, it supports the return of information such as PT orientation values, camera focal length, and focus values.
